How to Build a Cosmic Critter Pet with Raspberry Pi Pico

A tiny alien pet with tilt-based moods, nebula lights, and chirpy sounds

Raspberry Pi Pico Pets Beginner40 minutes5 components

Updated April 15, 2026

Open in Schematik

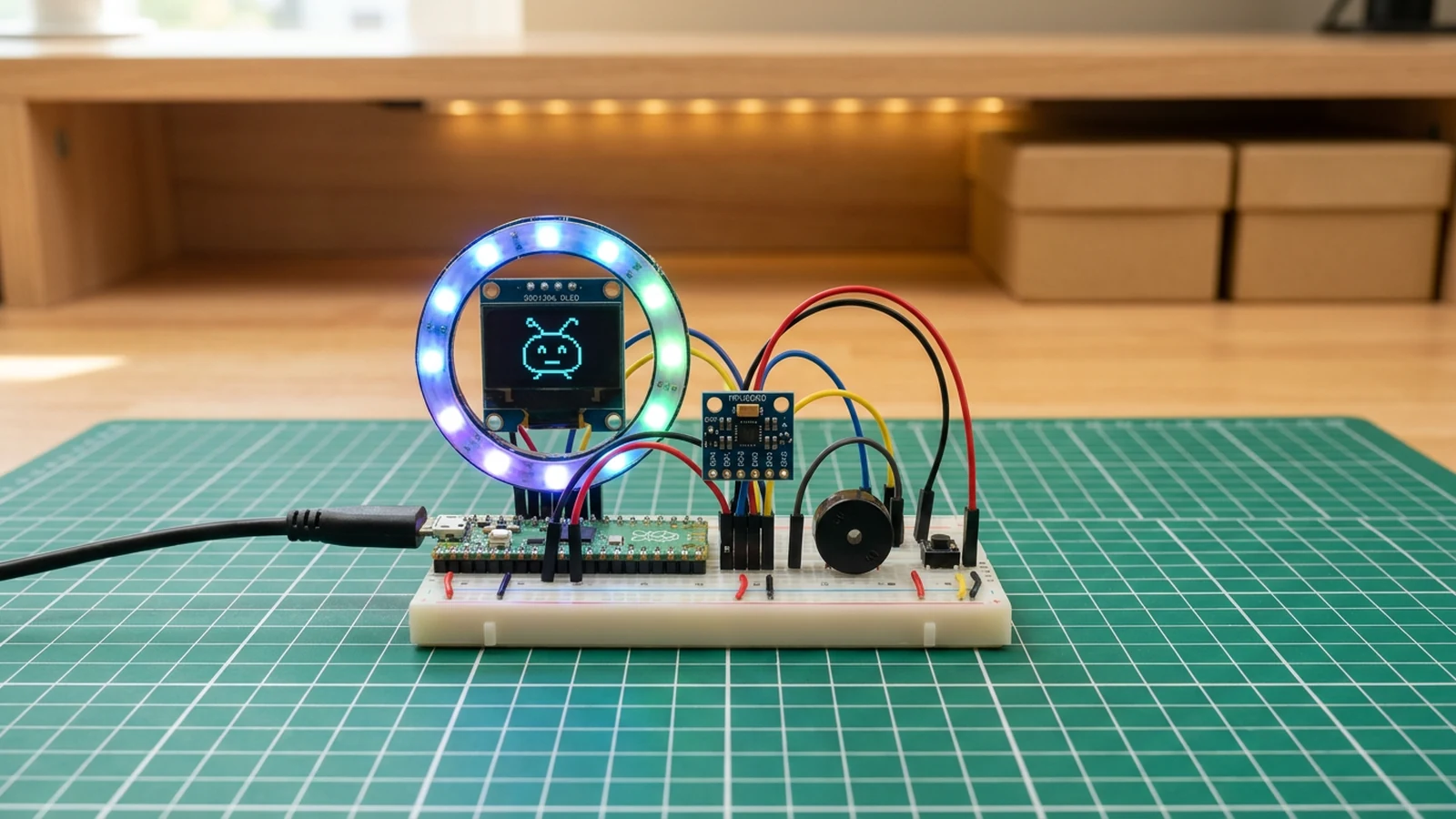

How to Build a Cosmic Critter Pet with Raspberry Pi Pico — For illustrative purposes only

On this page

What you'll build
Wiring diagram
Components needed
Assembly
Pin assignments
Code

What you'll build

In this guide you will bring a Cosmic Critter to life on a Raspberry Pi Pico using an MPU6050 accelerometer, a 0.96-inch OLED display for its animated face, a WS2812B LED ring for nebula-inspired ambient lighting, and a piezo buzzer for chirps and purrs. The critter's mood changes in real time based on how you tilt and handle the device -- hold it level and it drifts into a calm trance with slow-pulsing blue LEDs, tilt it sharply and it gets excited with rapid rainbow sparkles and high-pitched trills, leave it still too long and it grows bored with droopy eyes and a dim amber glow. The result is a pocket-sized alien companion that reacts to your every move.

The Raspberry Pi Pico is an excellent platform for beginners because MicroPython lets you write, test, and tweak code without a compile step. This project teaches you how to read accelerometer data over I2C on the Pico, map tilt angles to discrete mood states using threshold logic, drive a NeoPixel LED ring with the Pico's PIO state machine for flicker-free animations, and generate melodic tones on a buzzer using PWM. You will also learn how to render simple bitmap animations on the OLED, giving the critter expressive eyes, a mouth, and antennae that wiggle when it is happy.

When you finish you will have a self-contained interactive toy that runs from a USB power bank or a pair of AAA batteries. The code is organized into clean modules for mood logic, LED patterns, face animation, and sound effects, so you can easily add new moods, create your own critter species with different personalities, or wire up additional sensors like a light-dependent resistor to make the critter react to darkness. It is a perfect first Pico project that teaches real embedded programming concepts while producing something genuinely fun to play with. For an ESP32-based take on the virtual pet concept, check out the ClawdBot Tamagotchi which uses buttons instead of motion for interaction.

Wiring diagram

React Flow

Components needed

Component	Type	Qty	Buy
MPU6050 Motion Sensor	sensor	1	€4.75
SSD1306 OLED	display	1	€4.30
WS2812B LED Ring	actuator	1
Piezo Buzzer	actuator	1	€4.75
Mood Button	other	1	€8.30

Prices and availability are indicative and may have been updated by the supplier. Schematik may earn a commission from purchases made through affiliate links.

Assembly

Connect I2C sensors to the Pico

Wire MPU6050 and SSD1306 OLED: VCC to 3.3V, GND to ground, SDA to GP4, SCL to GP5. Both share the same I2C bus.

Tips

Keep I2C wires short and double-check that all modules share GND.

Warning

Pico GPIO is 3.3V only — do not connect 5V logic to any GPIO pin.

Wire the LED ring

Connect WS2812B 5V to VBUS (USB 5V), GND to Pico GND, and DIN to GP12.

Tips

Add a 470 µF capacitor across LED ring 5V and GND to smooth power spikes.

Warning

Use a shared ground between external LED power and the Pico.

Add buzzer and mood button

Connect piezo buzzer signal to GP15 (other lead to GND). Wire mood button between GP14 and GND — the code enables the internal pull-up.

Tips

A 100 Ω resistor in series with the buzzer can reduce volume if needed.

Upload and play

Flash the sketch via USB. Tilt the Pico to change the critter mood — level for happy, forward tilt for sleepy, sideways for dizzy, backward for hyper. Press the button to manually cycle moods.

Tips

Experiment with the tilt thresholds in the code to match your preferred sensitivity.

Pin assignments

Pin	Connection	Type
3V3	pico-imu-1 VCC	POWER
GND	pico-imu-1 GND	GROUND
GPIO 4	pico-imu-1 SDA	I2C
GPIO 5	pico-imu-1 SCL	I2C
3V3	pico-oled-1 VCC	POWER
GND	pico-oled-1 GND	GROUND
GPIO 4	pico-oled-1 SDA	I2C
GPIO 5	pico-oled-1 SCL	I2C
5V	pico-led-ring-1 5V	POWER
GND	pico-led-ring-1 GND	GROUND
GPIO 12	pico-led-ring-1 DIN	DATA
GND	pico-buzzer-1 GND	GROUND
GPIO 15	pico-buzzer-1 SIG	PWM
GND	pico-mode-button-1 GND	GROUND
GPIO 14	pico-mode-button-1 SIG	DIGITAL

Code

Arduino C++

DeployDeploy in Schematik

#include <Wire.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_SSD1306.h>
#include <FastLED.h>

#define SDA_PIN 4
#define SCL_PIN 5
#define BTN_PIN 14
#define BUZZER_PIN 15
#define LED_PIN 12
#define NUM_LEDS 12

Adafruit_MPU6050 mpu;
Adafruit_SSD1306 display(128, 64, &Wire, -1);
CRGB leds[NUM_LEDS];

enum Mood { HAPPY, SLEEPY, DIZZY, HYPER };
Mood mood = HAPPY;
Mood prevMood = HAPPY;
unsigned long lastChirpMs = 0;
unsigned long lastBtnMs = 0;

const char* moodName(Mood m) {
  switch (m) {
    case HAPPY:  return "Happy  :)";
    case SLEEPY: return "Sleepy zzz";
    case DIZZY:  return "Dizzy  @_@";
    case HYPER:  return "Hyper  !!!";
    default:     return "Unknown";
  }
}

void renderMoodLights(Mood m) {
  switch (m) {
    case HAPPY:
      fill_solid(leds, NUM_LEDS, CRGB(0, 120, 255));
      break;
    case SLEEPY:
      for (int i = 0; i < NUM_LEDS; i++) {
        uint8_t v = beatsin8(12, 30, 100, 0, i * 20);
        leds[i] = CRGB(v / 2, 0, v);
      }
      break;
    case DIZZY:
      for (int i = 0; i < NUM_LEDS; i++) {
        leds[i] = CHSV((millis() / 10 + i * 21) % 255, 255, 140);
      }
      break;
    case HYPER:
      for (int i = 0; i < NUM_LEDS; i++) {
        leds[i] = ((millis() / 80 + i) % 2 == 0) ? CRGB::OrangeRed : CRGB::Gold;
      }
      break;
  }
  FastLED.show();
}

void chirp(Mood m) {
  switch (m) {
    case HAPPY:  tone(BUZZER_PIN, 1400, 70); break;
    case SLEEPY: tone(BUZZER_PIN, 750, 120); break;
    case DIZZY:  tone(BUZZER_PIN, 1800, 40); break;
    case HYPER:  tone(BUZZER_PIN, 2200, 50); break;
  }
}

void setup() {
  Serial.begin(115200);
  Wire.begin(SDA_PIN, SCL_PIN);

  if (!mpu.begin()) Serial.println("MPU6050 not found");
  mpu.setAccelerometerRange(MPU6050_RANGE_4_G);

  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);

  FastLED.addLeds<NEOPIXEL, LED_PIN>(leds, NUM_LEDS);
  FastLED.setBrightness(120);

  pinMode(BTN_PIN, INPUT_PULLUP);
  pinMode(BUZZER_PIN, OUTPUT);
  Serial.println("Cosmic Critter ready");
}

void loop() {
  sensors_event_t a, g, t;
  mpu.getEvent(&a, &g, &t);

  if (a.acceleration.x > 5.0f)      mood = HYPER;
  else if (a.acceleration.x < -5.0f) mood = SLEEPY;
  else if (fabs(a.acceleration.y) > 6.0f) mood = DIZZY;
  else mood = HAPPY;

  if (!digitalRead(BTN_PIN) && millis() - lastBtnMs > 250) {
    mood = static_cast<Mood>((mood + 1) % 4);
    chirp(mood);
    lastBtnMs = millis();
  }

  if (mood != prevMood) {
    chirp(mood);
    prevMood = mood;
  }

  if (millis() - lastChirpMs > 3000) {
    chirp(mood);
    lastChirpMs = millis();
  }

  renderMoodLights(mood);

  display.clearDisplay();
  display.setCursor(0, 0);
  display.println("Pico Cosmic Critter");
  display.println("--------------------");
  display.print("Mood: ");
  display.println(moodName(mood));
  display.println();
  display.printf("Tilt X: %5.1f\n", a.acceleration.x);
  display.printf("Tilt Y: %5.1f\n", a.acceleration.y);
  display.println("BTN: cycle mood");
  display.display();

  delay(50);
}

// Run this and build other cool things at schematik.io
