How to Build an RFID Treasure Chest with ESP32

Tap the right NFC tag to unlock a servo latch with dramatic effects

ESP32 Security Intermediate50 minutes4 components

Updated June 12, 2026

Open in Schematik

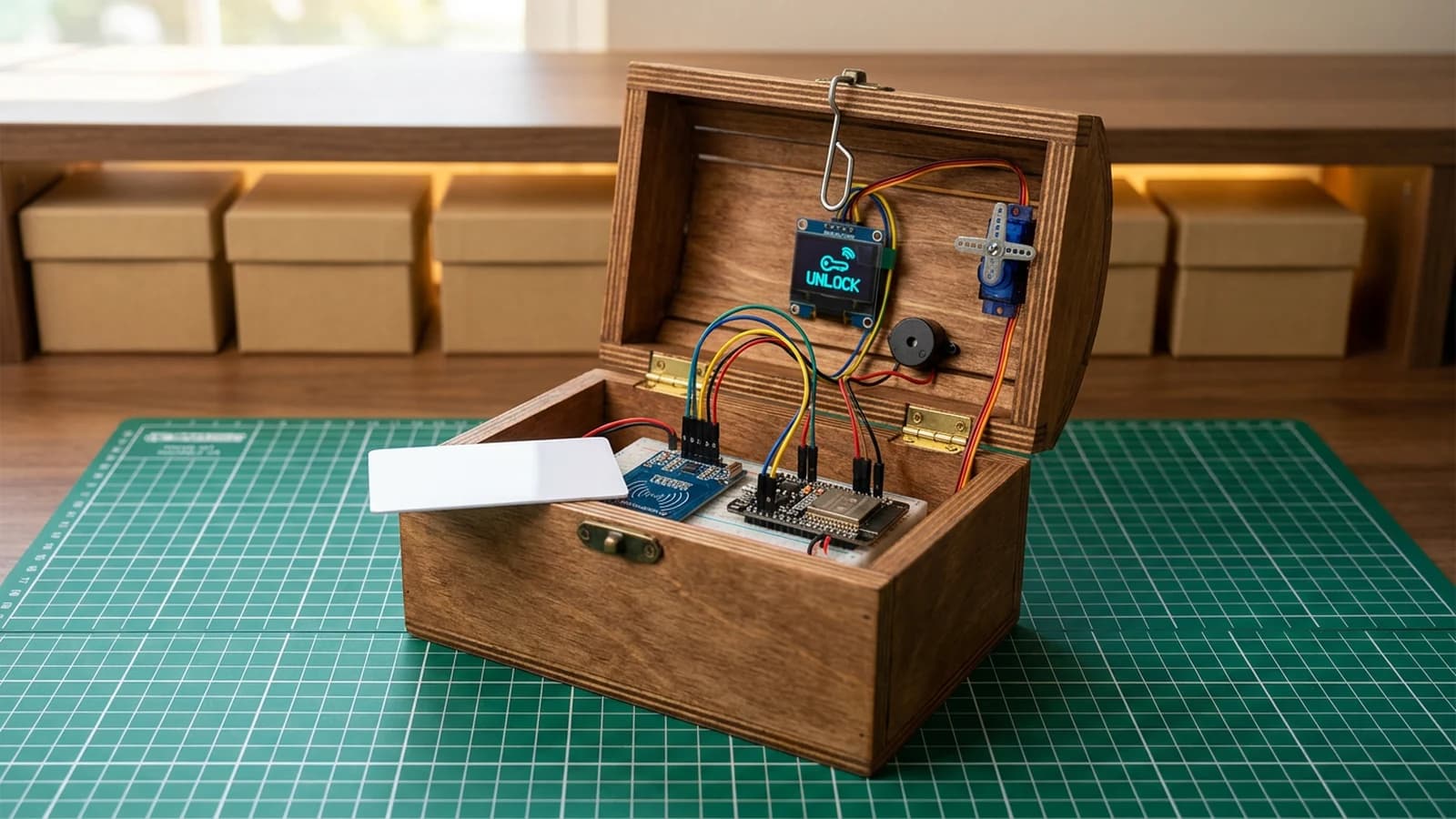

How to Build an RFID Treasure Chest with ESP32 — For illustrative purposes only

On this page

What you'll build
Wiring diagram
Components needed
Assembly
Pin assignments
Code

What you'll build

This guide builds an RFID-locked treasure chest using an ESP32, an MFRC522 reader, an SG90 servo as the latch, a piezo buzzer for audio feedback, and an SSD1306 OLED for status text. Tapping an authorised tag triggers a three-note unlock fanfare and swings the servo to the open position. An unrecognised tag plays a descending denied buzz and shows "DENIED" on the display. The chest auto-locks after a configurable timeout.

The project covers SPI communication with the MFRC522, reading MIFARE tag UIDs, comparing them against a stored value in the sketch, driving a servo with precise angle commands, and I2C communication with the OLED. It is a self-contained build: one valid UID hard-coded in validUid, one servo, and one display.

What you are building

The firmware has five jobs:

initialise the MFRC522 over SPI (SS_PIN GPIO 5, RST_PIN GPIO 27) and check for new cards each loop,
compare each presented tag's UID against the four-byte validUid array,
if valid, call unlockChest() — servo to 90°, play the granted tune, display "UNLOCKED!", record openedAtMs,
if invalid, call lockChest() — servo to 0°, play the denied buzz, display "DENIED",
auto-lock after AUTO_LOCK_MS milliseconds (default 8000) by checking elapsed time in loop().

Enrolling multiple UIDs, storing them in NVS, or adding a master-card mode are left as extensions.

Upload and calibrate

Flash the sketch from Schematik and open Serial Monitor at 115200 baud. On first boot you will see:

Treasure Chest ready

Tap any tag — the UID prints:

Tag UID: DE:AD:BE:EF

Copy those four hex bytes into the validUid array in the sketch, reflash, and tap the same tag. The OLED should show "UNLOCKED!" and the servo should swing to 90°. After AUTO_LOCK_MS milliseconds (8 seconds by default) it returns to 0° and Serial Monitor shows "Auto-locked".

To change the auto-lock delay, adjust:

const unsigned long AUTO_LOCK_MS = 8000;

The validUid array holds exactly four bytes. If your tag prints more than four bytes, use only the first four.

Troubleshooting

Serial Monitor shows no UID when a tag is presented. Check MOSI (GPIO 23), MISO (GPIO 19), SCK (GPIO 18), SS (GPIO 5), and RST (GPIO 27). A single incorrect connection silences the MFRC522 entirely. Confirm the module is powered from 3.3 V, not 5 V.
OLED is blank or shows garbled pixels. The I2C address is assumed to be 0x3C. If your module uses 0x3D, change the address in display.begin(SSD1306_SWITCHCAPVCC, 0x3C). Also check that SDA and SCL are not swapped.
Servo twitches but does not move to 90°. The servo is likely drawing more current than the USB port can supply cleanly. Power the servo 5 V rail from a dedicated source and ensure the ground is shared with the ESP32.
Valid tag plays "UNLOCKED" but chest does not open mechanically. The servo travel range may not clear the latch. Adjust the unlock angle from 90 to a value that physically clears your specific latch geometry; values between 80 and 120 are typical for SG90s mounted at different orientations.
Chest auto-locks immediately after unlocking. The system clock or openedAtMs is being reset. Check that openedAtMs = millis() is set inside unlockChest() and that the comparison in loop() uses subtraction: millis() - openedAtMs > AUTO_LOCK_MS.
Known tag reads as denied after reflashing. The validUid bytes are in a different order or you copied the wrong tag's UID. Tap the tag again with a fresh reflash to confirm the printed UID, and copy all four bytes in the order printed.

Going further

The cleanest immediate extension is storing multiple authorised UIDs in the ESP32's non-volatile storage using Preferences, so you can add or revoke tags without reflashing. Each UID becomes a key-value entry; a short enrollment routine (hold the chest closed while tapping a new tag twice) handles registration without USB.

For a heavier-duty lock, replace the SG90 with a 12 V solenoid lock driven through a MOSFET. The rest of the code stays the same; only the GPIO output logic changes from a servo angle command to a short digital pulse to energise the solenoid.

Wiring diagram

Loading diagram…

Components needed

Component	Type	Qty	Buy
13.56MHz RFID Module (Embedded PCB Antenna)	sensor	1	$19.00
M5Stack SG90 Servo	actuator	1	$5.50
Piezo Buzzer	actuator	1	$1.50
Grove OLED Display 0.66" (SSD1306)	display	1	$5.50

Supplier links, prices, and availability are shown as a guide and may change. Schematik may earn a commission from purchases made through affiliate links.

Assembly

Wire the RFID reader on SPI

Connect MFRC522: 3.3V to 3.3V, GND to GND, MOSI to GPIO23, MISO to GPIO19, SCK to GPIO18, SDA(SS) to GPIO5, RST to GPIO27.

Tips

Keep RFID antenna area clear of metal — it reduces read range significantly.

Warning

The MFRC522 is a 3.3V device — do not power it from 5V.

Connect the servo lock

Wire SG90 servo: red wire to 5V (USB power), brown to GND, orange signal to GPIO26.

Tips

Power servo from the USB 5V rail, not from a GPIO pin. Share ground with ESP32.

Warning

Servo stall current can exceed what a GPIO pin can supply — always use a separate power source.

Add buzzer and status display

Wire piezo buzzer signal to GPIO25 (other lead to GND). Connect OLED VCC to 3.3V, GND to GND, SDA to GPIO21, SCL to GPIO22.

Tips

Mount the OLED on the chest lid for a dramatic status reveal.

Upload and register your tag

Flash the sketch and open Serial Monitor at 115200 baud. Tap any NFC tag — its UID will print. Copy your tag UID into the validUid array in the code, reflash, and tap again to unlock.

Tips

The chest auto-locks after 8 seconds — adjust AUTO_LOCK_MS to change the timeout.

Pin assignments

Pin	Connection	Type
3V3	rfid-reader-1 3.3V	POWER
GND	rfid-reader-1 GND	GROUND
GPIO 23	rfid-reader-1 MOSI	SPI
GPIO 19	rfid-reader-1 MISO	SPI
GPIO 18	rfid-reader-1 SCK	SPI
GPIO 5	rfid-reader-1 SS	DIGITAL
GPIO 27	rfid-reader-1 RST	DIGITAL
5V	lock-servo-1 5V	POWER
GND	lock-servo-1 GND	GROUND
GPIO 26	lock-servo-1 SIG	PWM
GND	chest-buzzer-1 GND	GROUND
GPIO 25	chest-buzzer-1 SIG	PWM
3V3	chest-oled-1 VCC	POWER
GND	chest-oled-1 GND	GROUND
GPIO 21	chest-oled-1 SDA	I2C
GPIO 22	chest-oled-1 SCL	I2C

Code

Arduino C++

OpenOpen in Schematik

#include <Wire.h>
#include <SPI.h>
#include <MFRC522.h>
#include <ESP32Servo.h>
#include <Adafruit_SSD1306.h>

#define SS_PIN 5
#define RST_PIN 27
#define SERVO_PIN 26
#define BUZZER_PIN 25
#define SDA_PIN 21
#define SCL_PIN 22

MFRC522 rfid(SS_PIN, RST_PIN);
Servo lockServo;
Adafruit_SSD1306 display(128, 64, &Wire, -1);

byte validUid[4] = {0xDE, 0xAD, 0xBE, 0xEF};
bool chestOpen = false;
unsigned long openedAtMs = 0;
const unsigned long AUTO_LOCK_MS = 8000;

void playGranted() {
  tone(BUZZER_PIN, 1400, 100); delay(120);
  tone(BUZZER_PIN, 1800, 100); delay(120);
  tone(BUZZER_PIN, 2200, 150); delay(160);
  noTone(BUZZER_PIN);
}

void playDenied() {
  tone(BUZZER_PIN, 400, 200); delay(220);
  tone(BUZZER_PIN, 300, 300); delay(320);
  noTone(BUZZER_PIN);
}

void lockChest() {
  lockServo.write(0);
  chestOpen = false;
}

void unlockChest() {
  lockServo.write(90);
  chestOpen = true;
  openedAtMs = millis();
}

void setup() {
  Serial.begin(115200);
  delay(100);

  Wire.begin(SDA_PIN, SCL_PIN);
  SPI.begin();
  rfid.PCD_Init();

  lockServo.attach(SERVO_PIN);
  lockServo.write(0);

  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  pinMode(BUZZER_PIN, OUTPUT);

  display.clearDisplay();
  display.setCursor(0, 20);
  display.setTextSize(1);
  display.println("  Treasure Chest");
  display.println("  Tap tag to unlock");
  display.display();
  Serial.println("Treasure Chest ready");
}

void loop() {
  if (chestOpen && millis() - openedAtMs > AUTO_LOCK_MS) {
    lockChest();
    tone(BUZZER_PIN, 600, 100);
    Serial.println("Auto-locked");
  }

  if (!rfid.PICC_IsNewCardPresent() || !rfid.PICC_ReadCardSerial()) {
    delay(50);
    return;
  }

  Serial.printf("Tag UID: %02X:%02X:%02X:%02X\n",
    rfid.uid.uidByte[0], rfid.uid.uidByte[1],
    rfid.uid.uidByte[2], rfid.uid.uidByte[3]);

  bool valid = rfid.uid.size >= 4;
  for (byte i = 0; i < 4 && valid; i++) {
    if (rfid.uid.uidByte[i] != validUid[i]) valid = false;
  }

  display.clearDisplay();
  display.setCursor(0, 0);

  if (valid) {
    unlockChest();
    playGranted();
    display.setTextSize(2);
    display.setCursor(4, 8);
    display.println("UNLOCKED!");
    display.setTextSize(1);
    display.setCursor(0, 40);
    display.println("Auto-locks in 8s");
  } else {
    lockChest();
    playDenied();
    display.setTextSize(2);
    display.setCursor(12, 8);
    display.println("DENIED");
    display.setTextSize(1);
    display.setCursor(0, 40);
    display.println("Unknown tag");
  }
  display.display();

  rfid.PICC_HaltA();
  rfid.PCD_StopCrypto1();
  delay(500);
}
